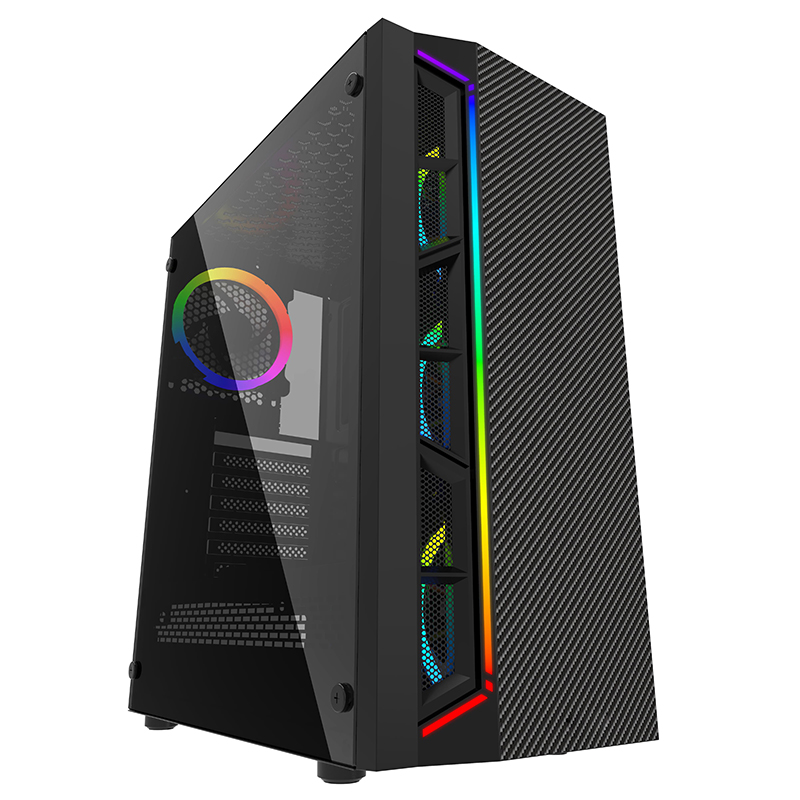

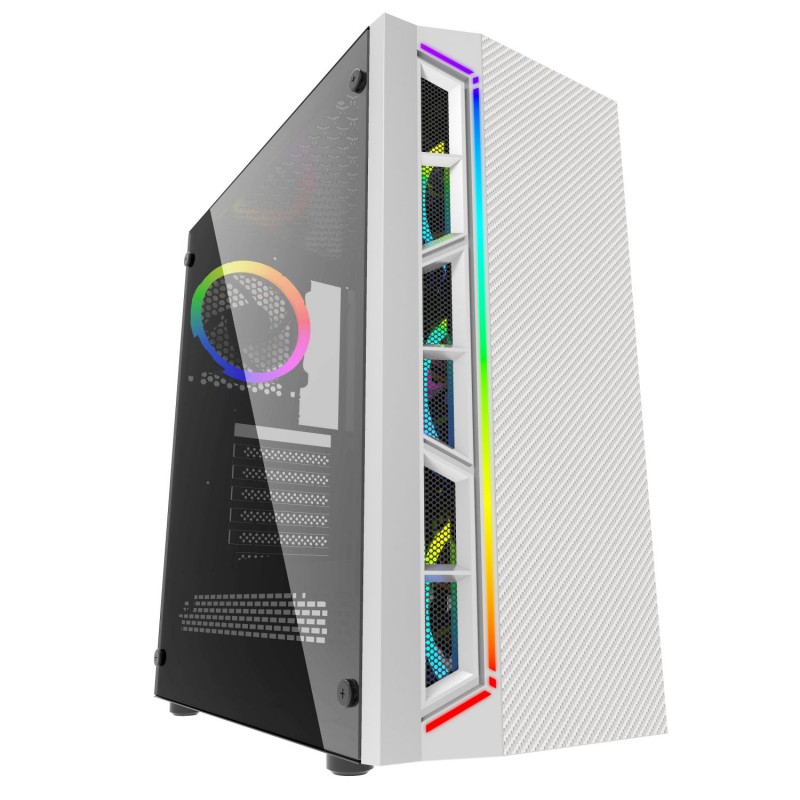

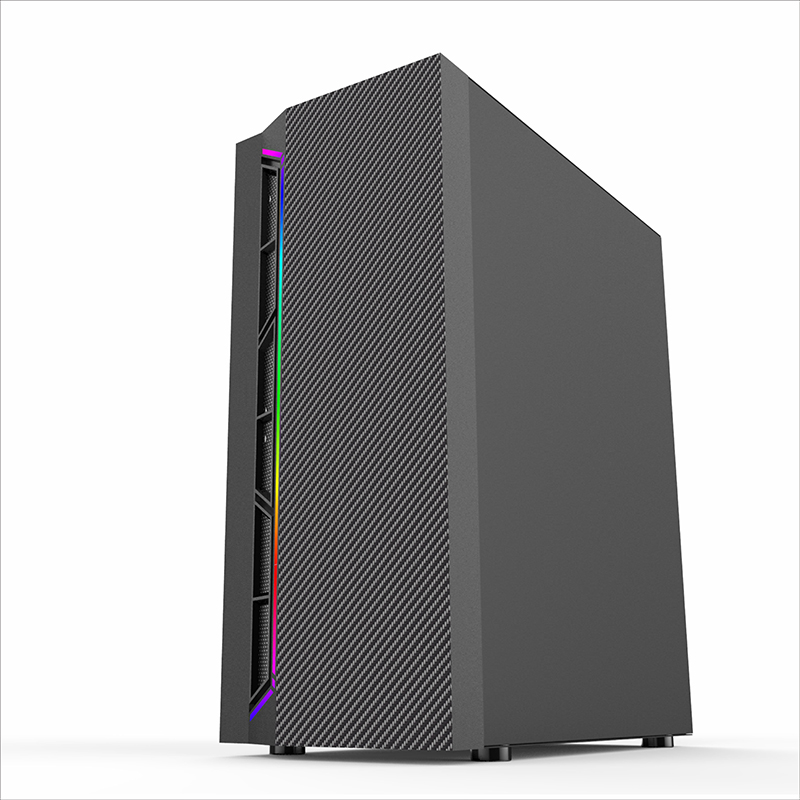

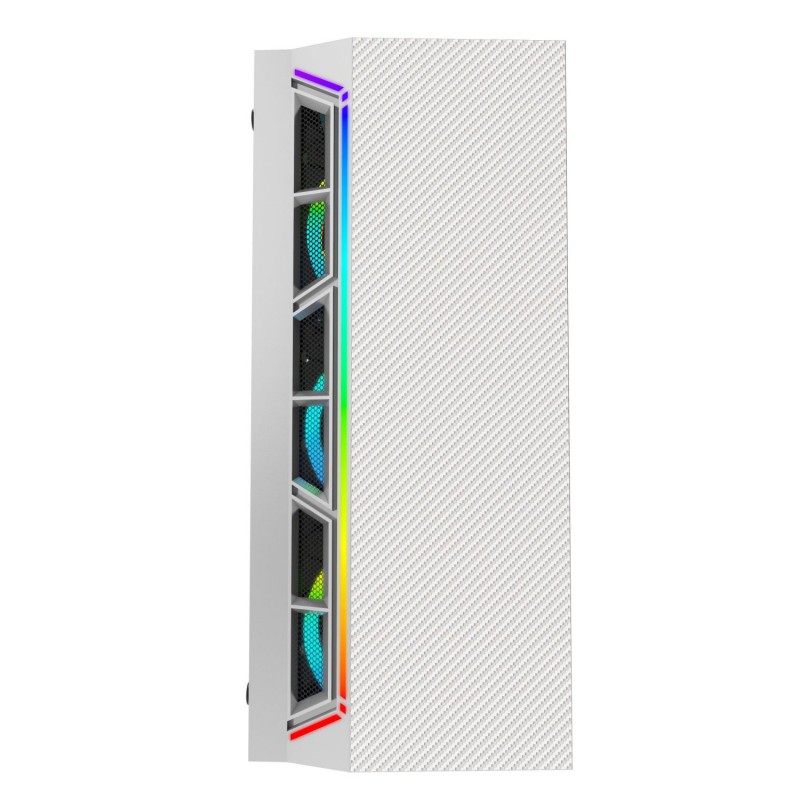

JX188-12

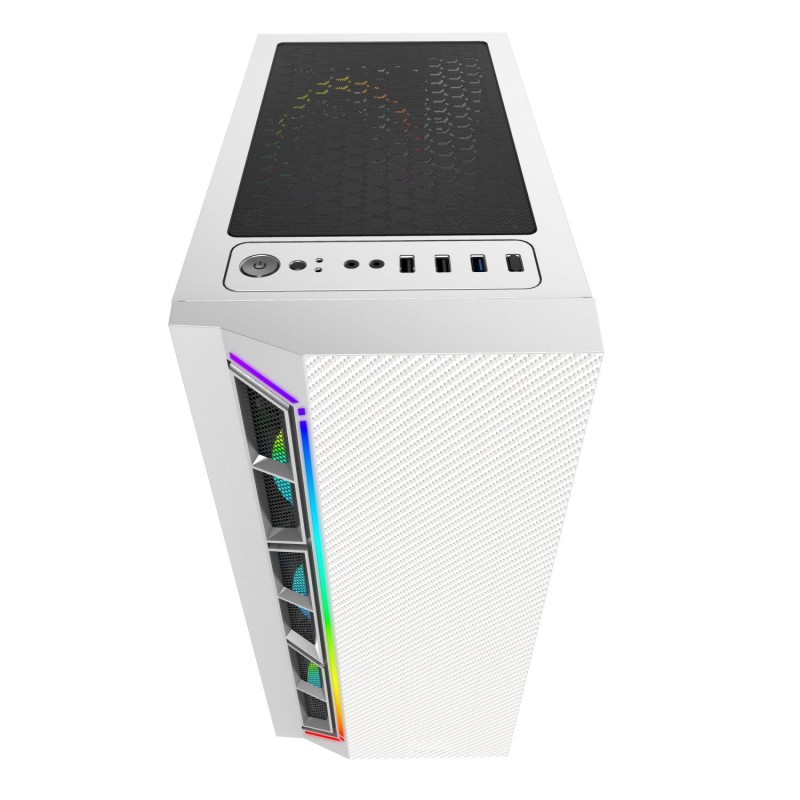

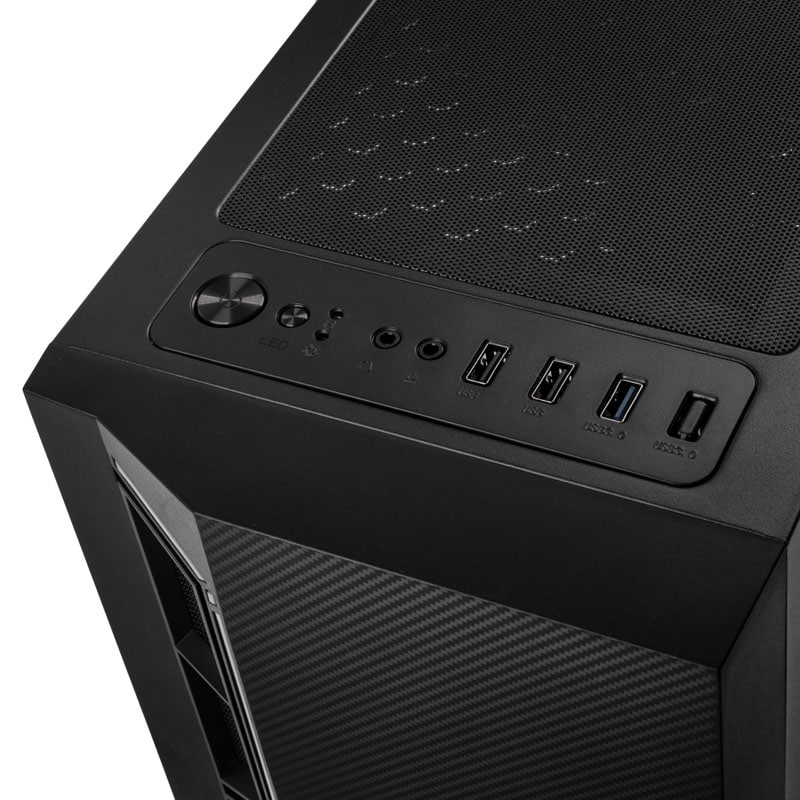

I/O PortsOne more USB optional
1 x USB 3.0
2 x USB 1.1
1 x HD Audio & Mic
Reset Button
Power Button
Material0.5mm Steel Structure
Tempered Glass
Plastic

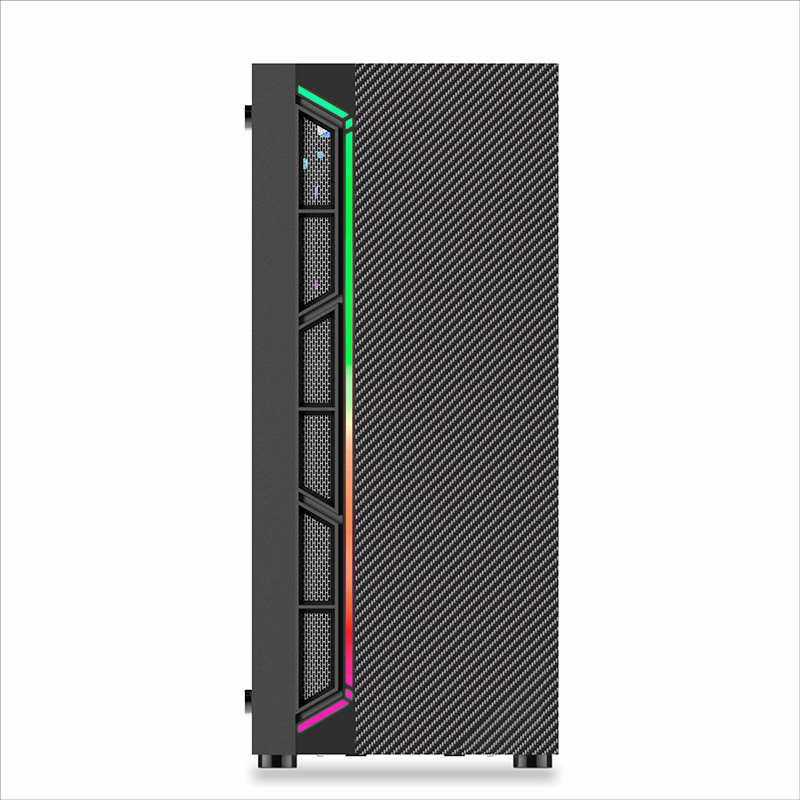

Front panelPlastic+RGB

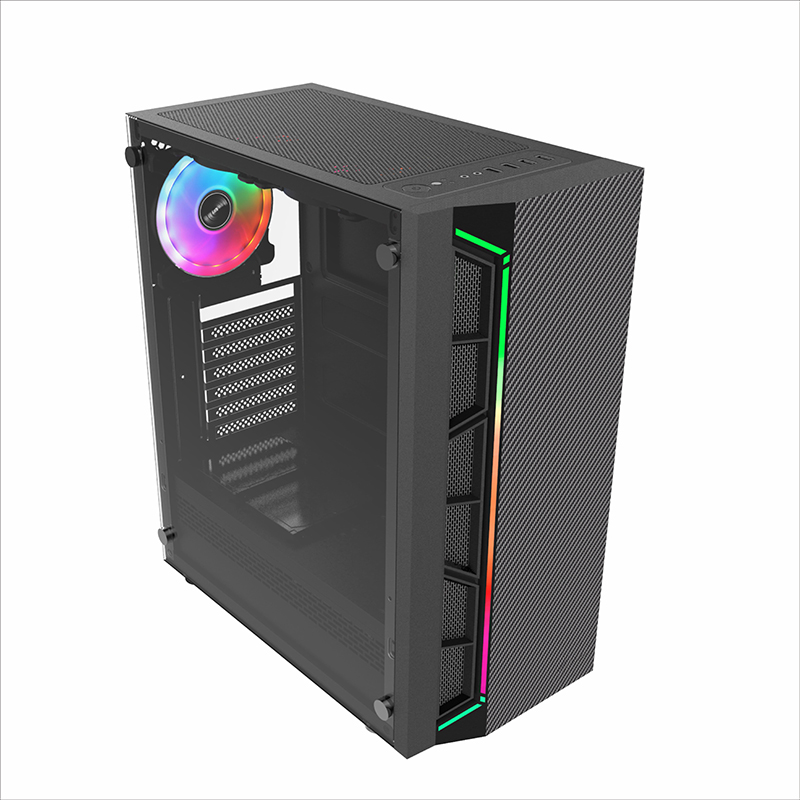

Left Side PanelTempered Glass with 4 Screws

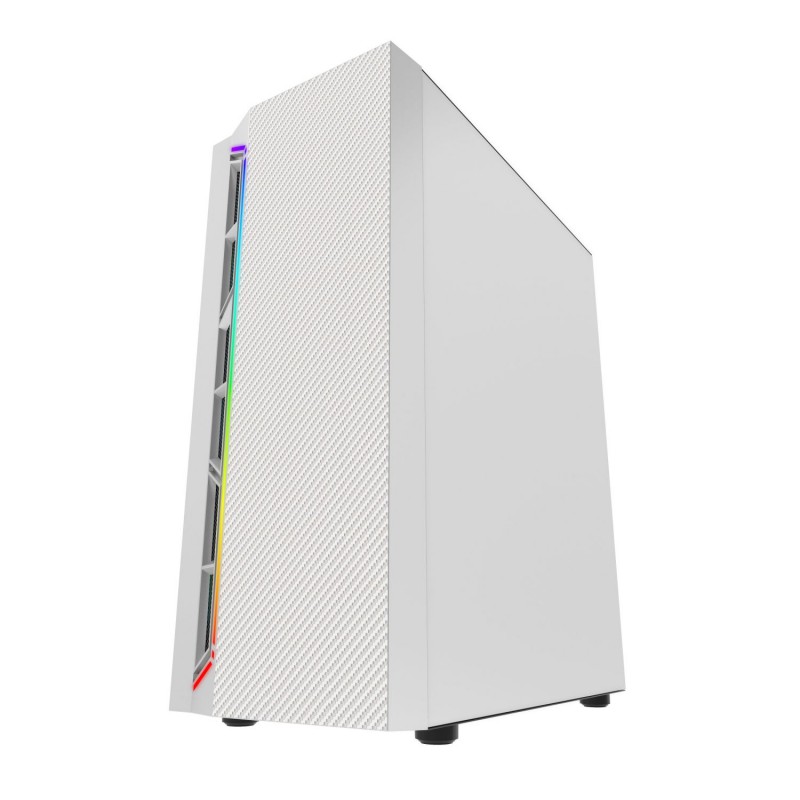

Right Side PanelMetal Flat/Convex (optional)

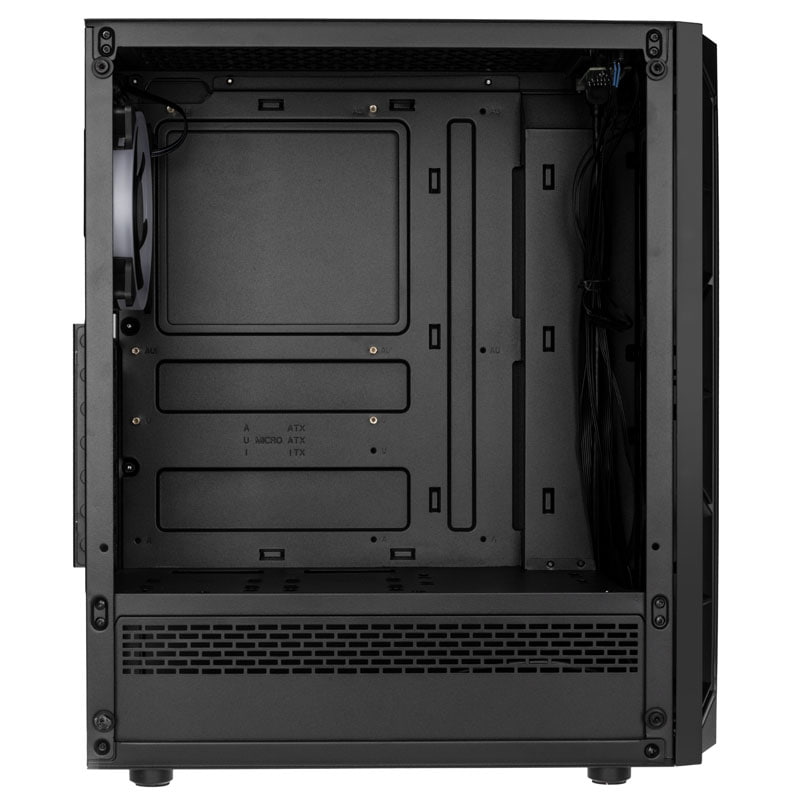

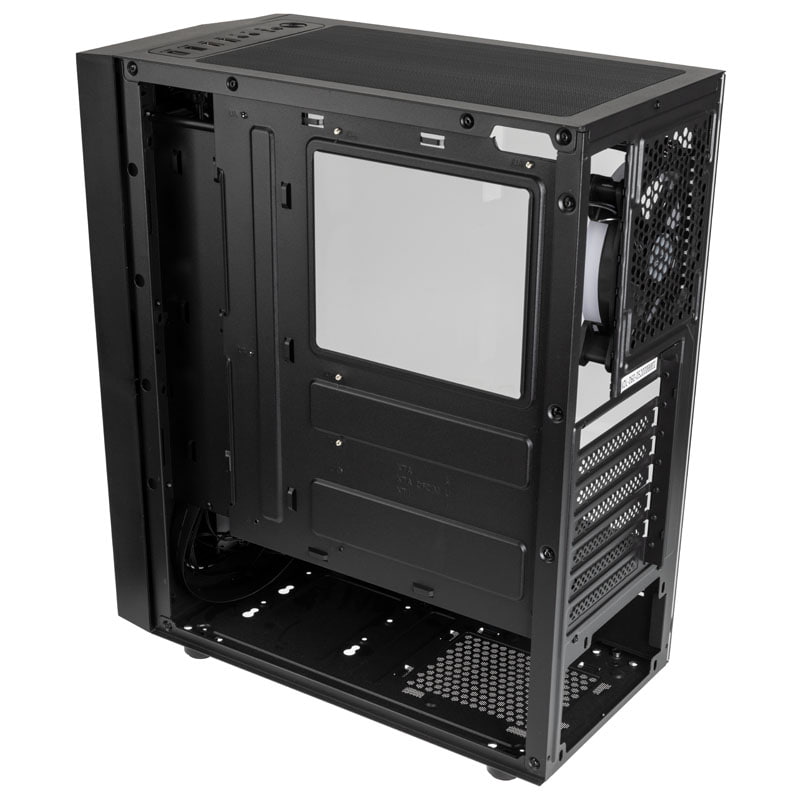

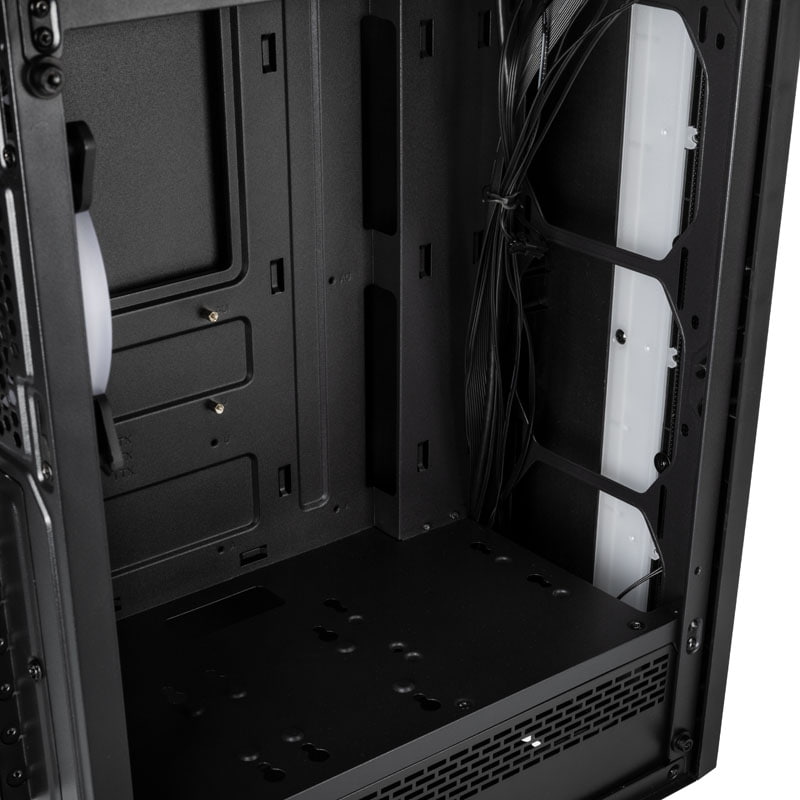

Motherboard SupportATX/ M-ATX/ ITX
PSU Position & TypeBottom & ATX (max length 180mm)
PSU CoverOptional
Fan Support3 x 120mm or 2 x 140mm on Front
2 x 120mm on Top
1 x 120mm on Rear
Radiator SupportFront 240mm
Rear 120mm
Drive Support3.5″ HDD x 2
2.5″ SSD x 2
Max VGA Length330mm
Max CPU Height160mm
Expansion Slots7
Dust Filter Top, Bottom
Structure Dimension340(L) x 190(W) x 430(H)mm
Product Dimension375(L) x 190(W) x 440(H)mm
