E308

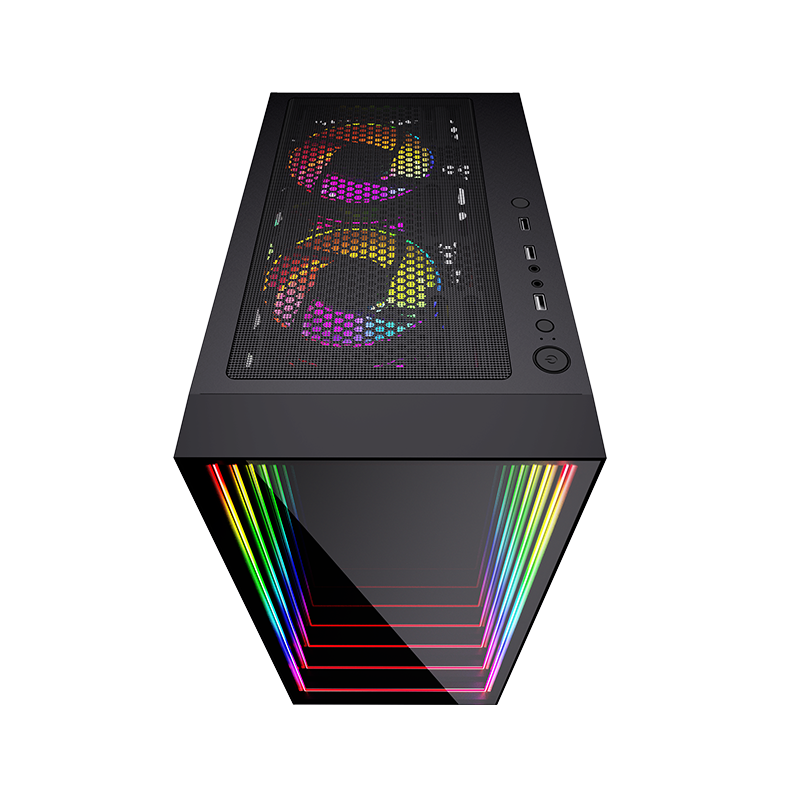

I/O PortsUSB3.0 x 1
USB1.1 x 2
HD Audio & Mic
Led Button
Reset Button
Power Button
Material0.6mm Steel Structure
Tempered Glass
Plastic
Left Side PanelTG with 4 Screws
Right Side PanelSteel
Motherboard SupportATX/ M-ATX/ ITX/ E-ATX 275
PSU SupportATX Bottom mounted (140-150mm)
Fan Support120/140mm x 3 at Front
120/140mm x 2 at Top
120mm x 2 at Bottom
120mm x 1 at Rear
Radiator Support240/280/360mm at Front
240/280mm at Top
120mm at Rear
Drive Support3.5″ HDD x 1
2.5″ SSD x 2
PCI Expansion Slotsx 7
Max VGA Length300mm
Max CPU Height160mm
Cable Management24mm
Dust Filter Top, Bottom
Structure Dimension330(L) x 212(W) x 470(H)mm
Carton Dimension525(L) x 262(W) x 430(H)mm
Packaging StandardK=K+EPS & Brown Carton
40HQ Loading QTY1165
