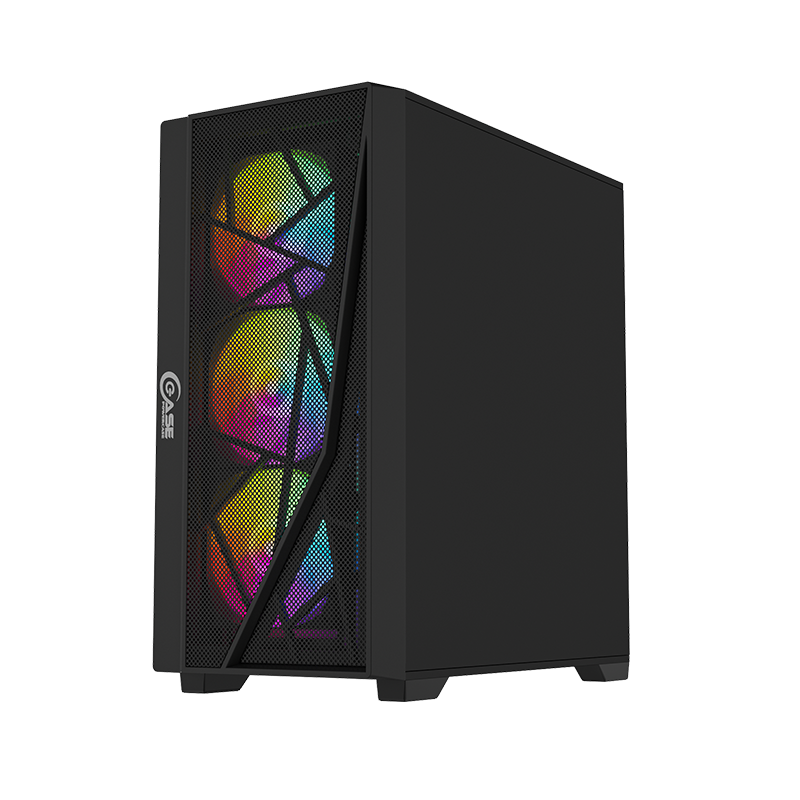

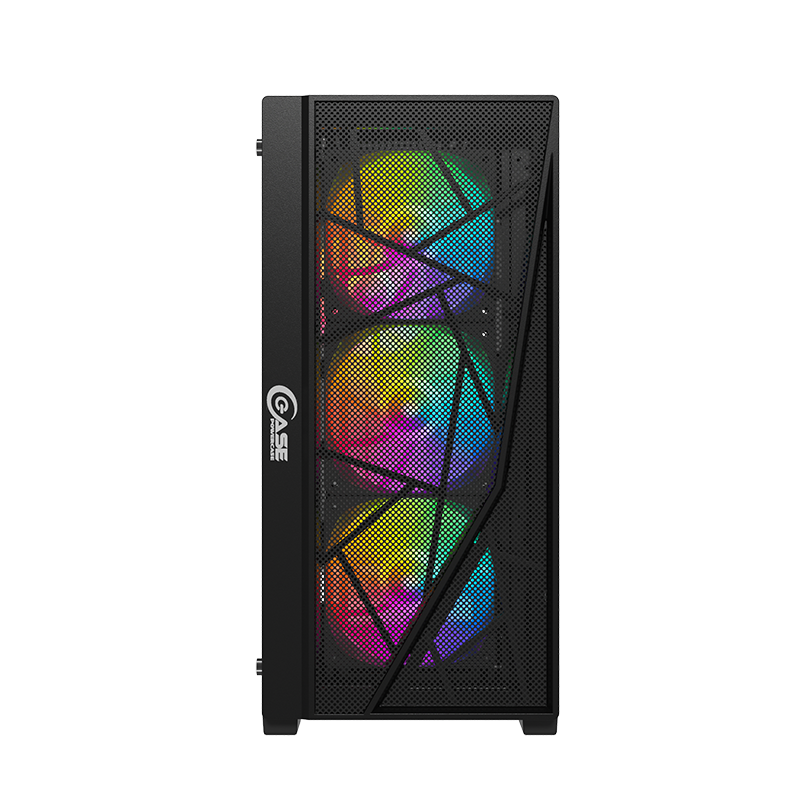

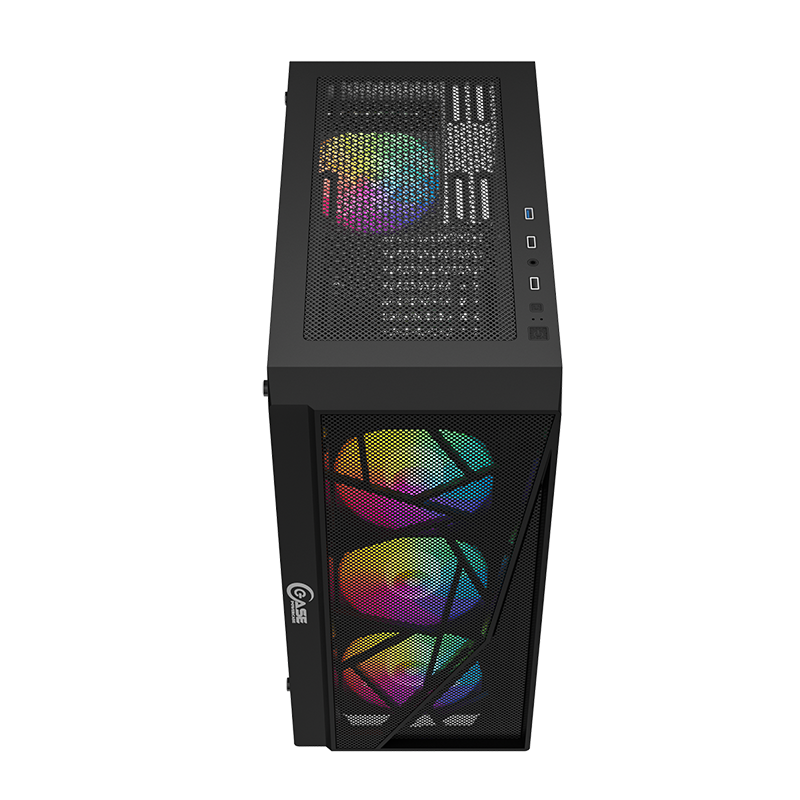

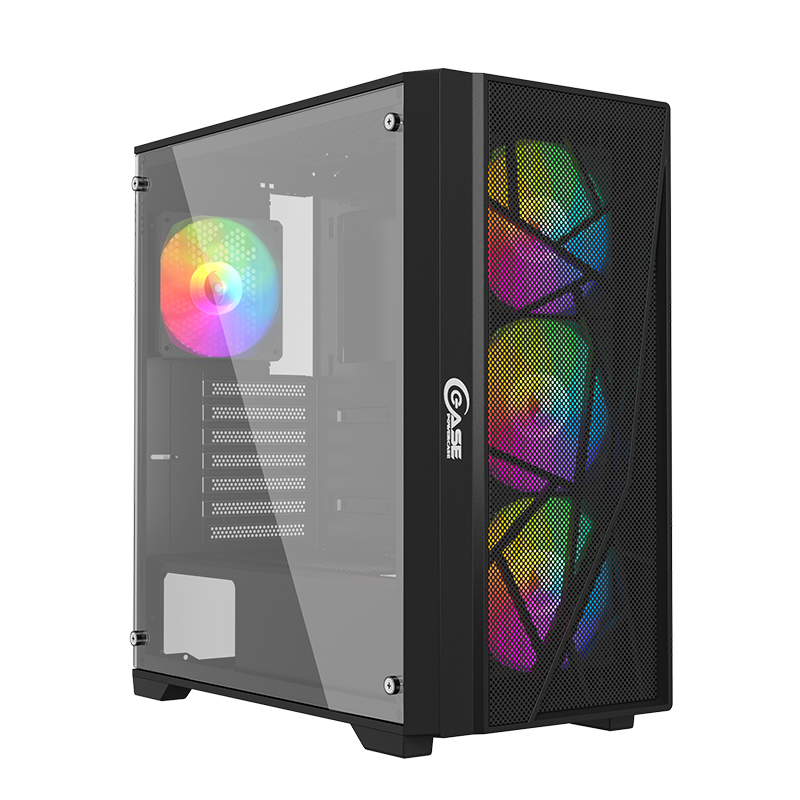

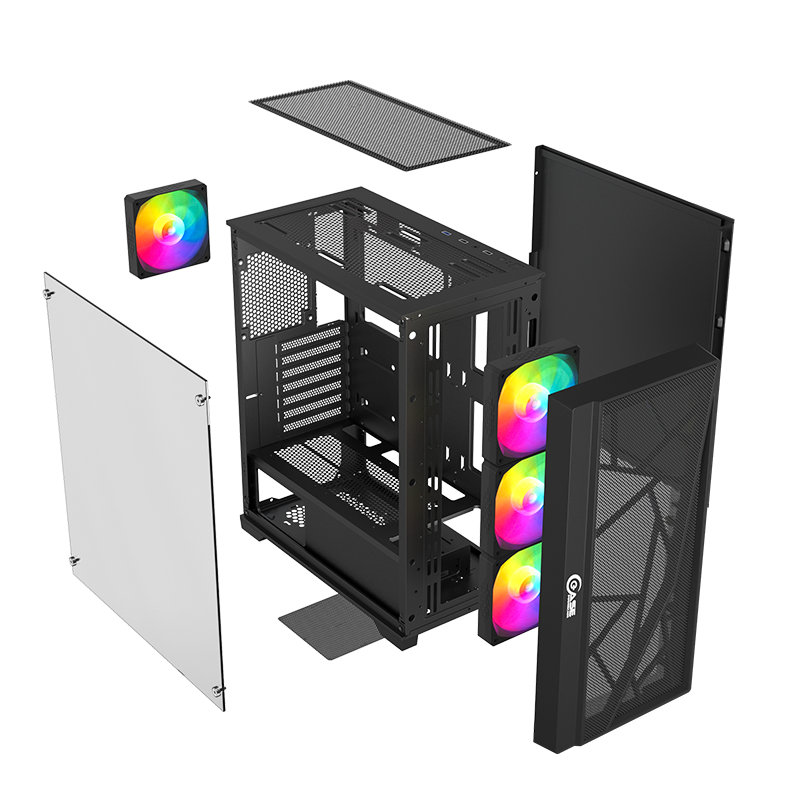

i732-M

Strucuture Size370 x 210 x 435mm(L x W x H)
Case  Size410 x 210 x 450mm(L x W x H)(with feet)
Packing size497(L)*262(W)*465(H)   1150PCS/40HQ
I/OUSB3.0 x1+USB1.0 x2, HD Audio, Power button+reset button
Left Side PanelTempered Glass with 4 Screws
Right Side PanelMetal
MaterialSPCC 0.5/0.6mm Black
PSU Position & TypeBottom & ATX PSU (150-220mm)
MBO SupportATX/ MATX/ Mini-ITX
Drive Bays3.5''HDD x 2
2.5''SSD x 2 TOOLESS
Cooler Fan Support3 x 120mm / 2 x 140mm on Front
2 x 120mm / 2 x 140mm on Top
1 x 120mm on Rear
2x 120mm on power cover
Water Cooling SupportFront:  120/240/280/360mm
Rear:120mm
PCI Expansion Slotsx 7
Max VGA Card Length360mm
Max CPU Cooler Height168mm
Cable Management25mm
Magnetic Dust Filter On Top & Bottom
Packaging StandardK=A+EPS & Brown Carton Box
QTY1150PCS/40HQ
