12CM Ring Single Color

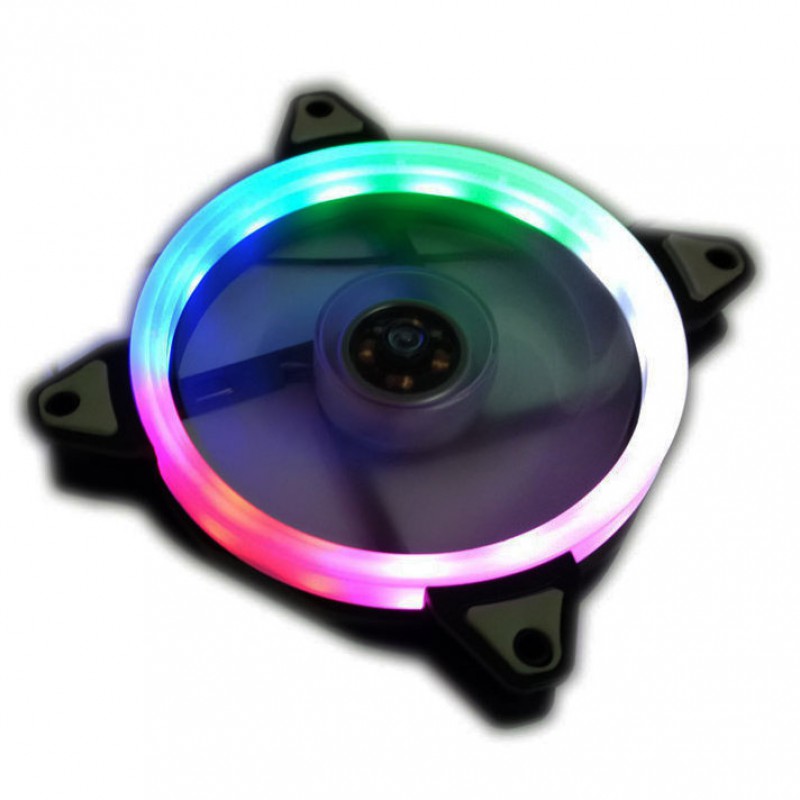

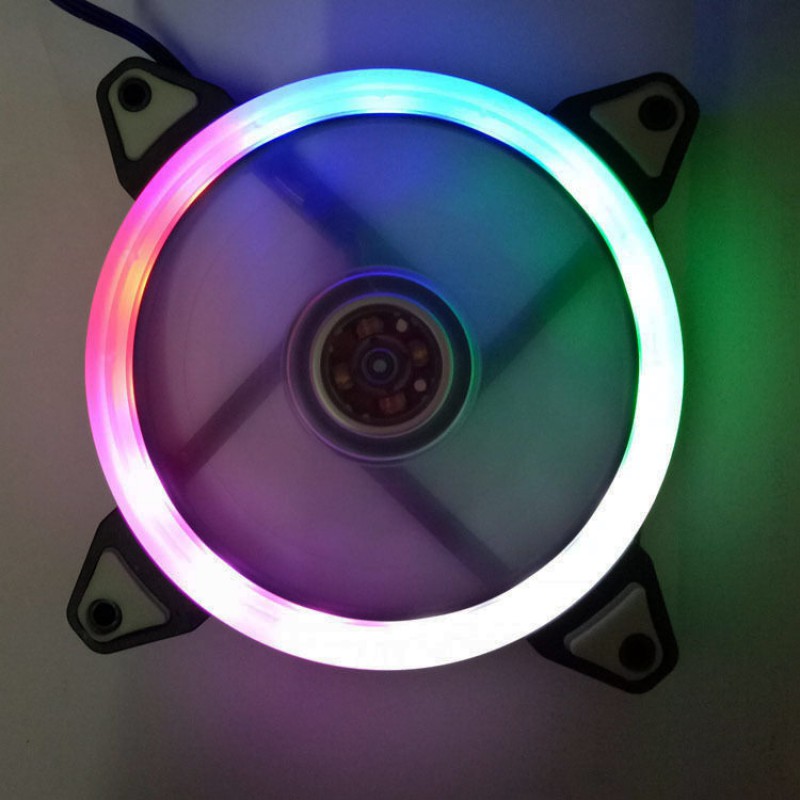

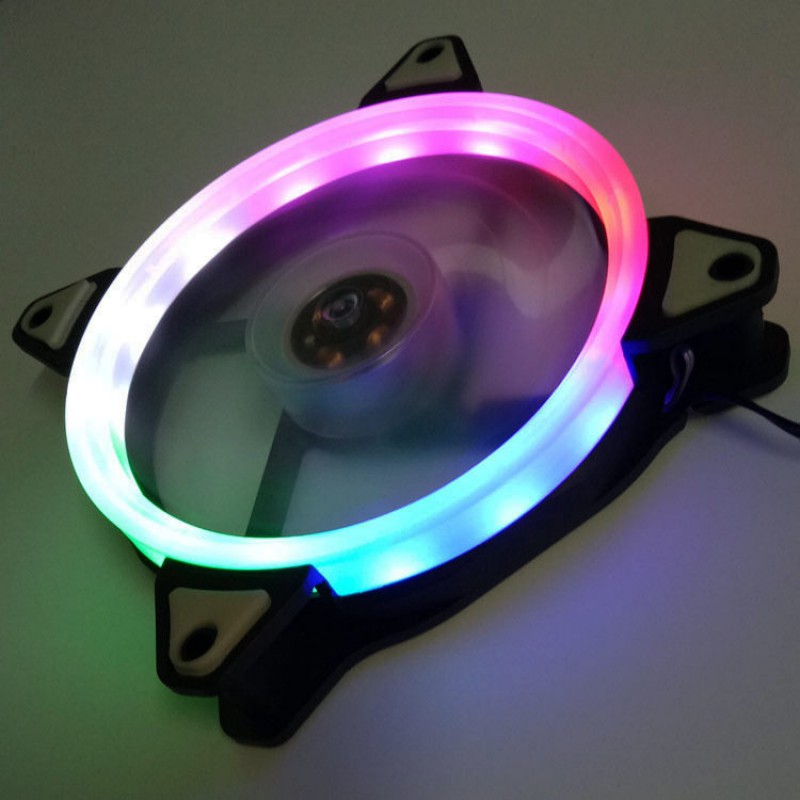

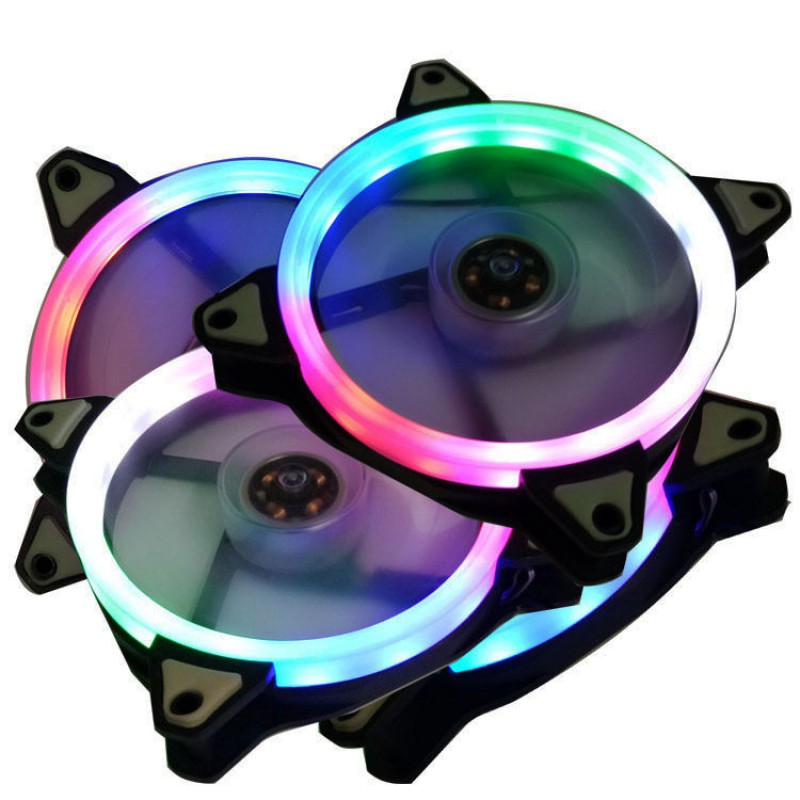

12CM RING RGB

PFBR-12-RGB
General Spcification
1.2 Outline 120mm" 120mm*25mm
1.3 Rated Voltage  DC  12V a.Rated voltage  b.25 ℃ 65%
1.4 Opearting Voltage Range 10.8-13.2V
1.5 Starting Voltage DC 5VMAX
Rated Current 0.26A+10%4MAX
1.6 Locked Curent 25C.65%
1.7 Power Consumption  3.12W+10%MAX
1.8 Speed 1100±10% a.25 ℃ 65%  b.Free Air    c.Rated voltage
1.90 Max. Airlow 31.2CFM(f/min) a.Rated voltage  b.AMCA Standard
1.10 Mtax. Static Presure 1.04mm-H2O
1.11 Noise LeveD 22.8dB(A) a.Rated voltage  b.Measured in a Nor-Echo Chamber c.CNS 8753 Standard
1.12 Life 30.000hrs 25℃ MTBF(Mean Time Failure Conf. Level 90%)
1.13 No. ofBlade 9 Blades
1.14 No. ofPole 4 Poles
1.15 Rotating Direction anticlockwise
